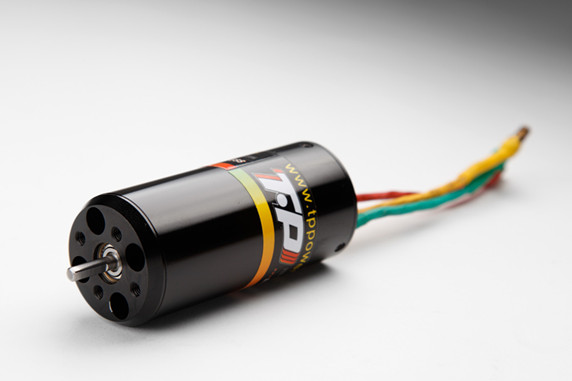

TP2920 4-Pole Inrunner Brushless Motor For Min -ECO,Min-Cat,Min-Mono RC Boat

T	KV	Max Amps (A)	Max Volt (V)	Max Power (W)	Max RPM	RM	No-load Current	Shaft Diameter (mm)	Diameter * Length (mm)	Weight (g)
4D	9800	75	6	450	60K	0.001	4.6	4/3.175	29*45	112
5D	9100	71	6.3	450	60K	0.002	3.8	4/3.175		112
6D	7600	58	7.8	450	60K	0.003	3.3	4/3.175		112
7D	6400	50	9	450	60K	0.004	2.4	4/3.175		112
8D	5600	45	10	450	60K	0.005	1.8	4/3.175		112
9D	5100	41	11.7	450	60K	0.006	1.7	4/3.175		112
10D	4600	35	13	450	60K	0.007	1.4	4/3.175		112
11D	4150	32	14.4	450	60K	0.009	1.3	4/3.175		112
12D	3600	26	17	450	60K	0.009	1.1	4/3.175		112
13D	3500	26	17	450	60K	0.012	1	4/3.175		112
14D	3300	25	18	450	60K	0.013	0.9	4/3.175		112
15D	3000	23	20	450	60K	0.018	0.8	4/3.175		112
16D	2800	21	21	450	60K	0.019	0.6	4/3.175		112
17D	2700	20	22	450	60K	0.022	0.6	4/3.175		112
18D	2600	19	23	450	60K	0.024	0.5	4/3.175		112
19D	2400	18	25	450	60K	0.029	0.5	4/3.175		112
20D	2300	16	26	450	60K	0.031	0.4	4/3.175		112
